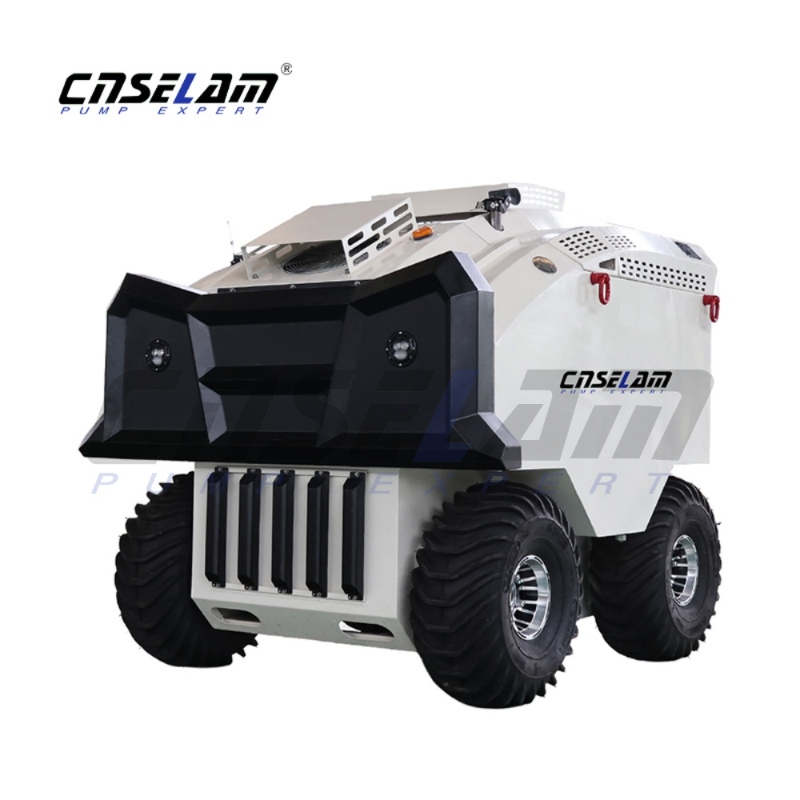

High Head Intelligent Hydraulic drainage robot

RMSP intelligent drainage equipment is a special intelligent drainage equipment developed to improve the city's ability to fight floods and rescue emergencies.

Modelo :
RMSP1100W-4
Caudal máximo (m³/h) :
200
Altura máxima (m) :
20
Caudal hidráulico (L/min) :
49
Presión (bar) :
138
Tanque de combustible hidráulico (L) :
20
Tanque de combustible (L) :
60
Tipo de combustible :
Diesel

Pregunte ahora

Detalles del producto

Product Description

It has two types of walking mechanisms: crawler type (V-type) and wheel type (W-type). This product adopts the high-efficiency aviation diesel engine as the power source, and the large-flow drainage equipment controlled by the hydraulic transmission system. It is mainly composed of diesel power cabin, equipment shelter, remote control automatic walking and drainage robot and other parts.

Product Features

1. The equipment is highly mobile and can be mounted on a light transport vehicle to quickly reach the waterlogged area for pumping and drainage operations.

2. The equipment has a large drainage flow, and the pumped water can be delivered to a safe area hundreds of meters away.

3. The walking device and the water pump of the equipment are driven by hydraulic, which runs smoothly and avoids the risk of electricity of traditional water pumps.

4. RMSP intelligent drainage equipment is operated by wireless remote control, equipped with 360-degree panorama dual pan-tilt rotation function, waterproof, lightning protection, high temperature resistance, corrosion resistance, WiFi direct connection without wiring, wireless transmission distance up to 500 meters.

Specification

Model	Max. flow rate(m3/h)	Max. head(m)	Hydraulic flow rate(L/min)	Pressure(bar)	Hydraulic fuel tank(L)	Fuel tank(L)	Fuel type
RMW460I	2*230	30	2*30-40	155	//	//	Diesel
RMSP450-V	450	12	60	140-170	30	30	Gasoline
RMSP600-V	600	15	230-40/160-80	140-172	60	70	Gasoline
RMSP700-6W	2*350	25	2*80	170	70	70	Diesel
RMSP1100-V	2*550	10	2*80	172	60	60	Diesel
RMSP1100-4W	2*550	10	2*80	172	60	60	Diesel
RMSP1200-6W-001	2*550	10	2*80	172	70	70	Diesel
RMSP1200-6W-002	2*550	10	2*30-40	172	60	60	Diesel
RMSP1200-6WV	2*600	15	2*80	170	70	83	Diesel
RMSP1300	1300	16	2*30-40	200	80	90	Diesel
RMSP2000	2*1000	15	2*30-40	220	210	240	Diesel
ZMSP800V	800	15	270	180	100	160	Diesel
