Name: Portable hydraulic sewage pump
Availability: InStock

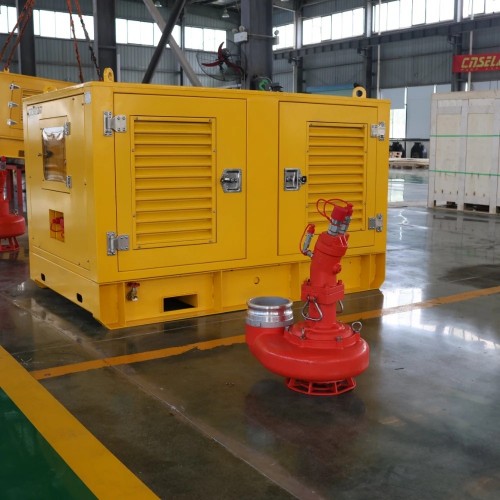

Portable hydraulic sewage pump

CNSELAM CHSP series hydraulic slurry pump has the characteristics of strong mobility and high efficiency.

Modelo :
CHSP150
Diámetro de salida (pulgadas) :
6
Caudal máximo (m³/h) :
0-320
Altura máxima (m) :
0-25
Caudal hidráulico (L/min) :
60-80
Presión (bar) :
172
Paso sólido (mm) :
85

Pregunte ahora

Detalles del producto

Scene Pictures

CHSP hydraulic slurry pump is made of 304 stainless steel and is designed for conveying media containing solid particles, such as ore slurry, mud, sand and lime slurry, etc. It has a wide range of uses.

Features：

1. The overall design of the pump is light, maneuverable and efficient.

2. The sewage pump impeller adopts a vortex design. The rotation of the impeller makes the liquid or slurry in the pump body move in a circular motion, forming a cone under the action of centrifugal force, reducing the contact between the liquid or slurry and the impeller and reducing friction.

Specifications

Model	Outlet diameter(inch)	Flow rate(m³/h)	Head(m)	Hydraulic flow rate(L/min)	Pressure(bar)	Solid passing(mm)
HSP65	2.5	65-120	10-60	30-80	280	58
HSP80	3	65-120	10-48	20-80	145	58
HSP100	4	120-250	10-50	30-80	155	65
HSP150	6	280-330	15-33.5	60-100	155-172	85
CHSP150	6	320	25	60-80	172	85
HSP200	8	450-500	0-12	80-120	140-190	100
CHSP200	8	600	25	120-140	230-270	85

（The corresponding hydraulic flow can be matched according to the actual working conditions.）
