Name: Durable hydraulic trash pump
Availability: InStock

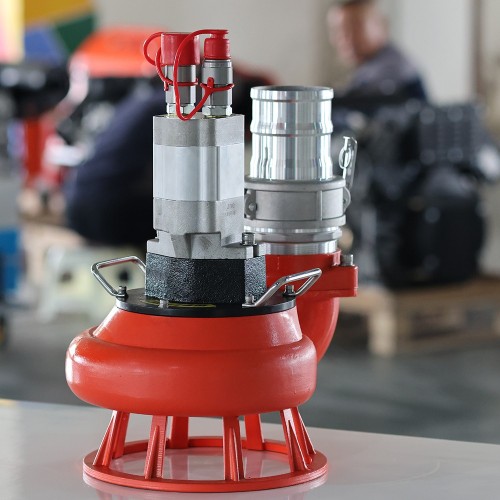

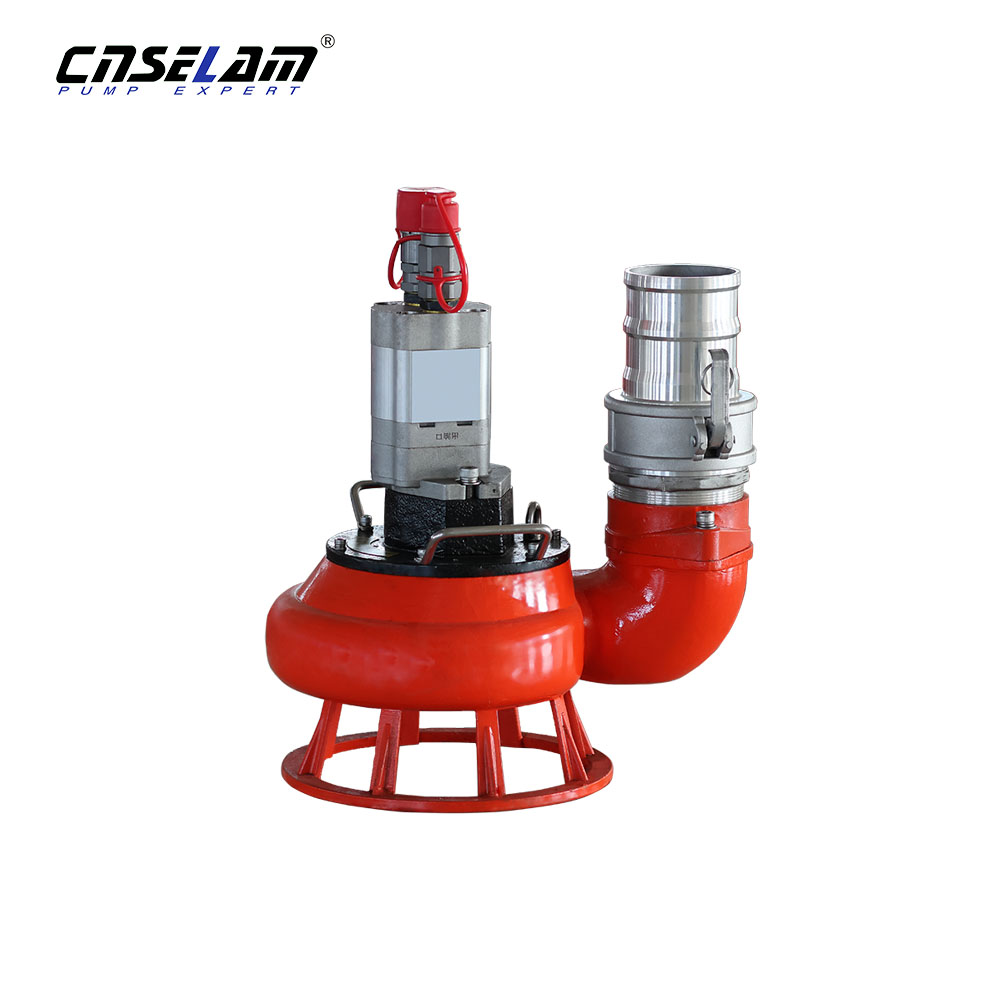

Durable hydraulic trash pump

CNSELAM HSP and CHSP series hydraulic submersible pump is a high pressure hydraulic trash pump, suitable for emergency rescue and drainage, urban flood control, etc.

Modelo :
HSP100
Diámetro de salida (pulgadas) :
4
Caudal máximo (m³/h) :
120-250
Altura máxima (m) :
10-50
Caudal hidráulico (L/min) :
30-80
Presión (bar) :
155
Paso sólido (mm) :
65

Pregunte ahora

Detalles del producto

Scene Pictures

CNSELAM HSP and CHSP series Hydraulic trash pumps are a type of equipment that uses centrifugal force generated by the rotation of the impeller to transport solid-liquid mixtures. Its core is to achieve liquid transportation through centrifugal force.

Features：

1.The slurry trash pump has the characteristics of small size, light weight and strong mobility.

2. It is directly driven by a hydraulic power station, eliminating the risk of electrical leakage and providing high efficiency.

Specifications

Model	Outlet diameter(inch)	Flow rate(m³/h)	Head(m)	Hydraulic flow rate(L/min)	Pressure(bar)	Solid passing(mm)
HSP65	2.5	65-120	10-60	30-80	280	58
HSP80	3	65-120	10-48	20-80	145	58
HSP100	4	120-250	10-50	30-80	155	65
HSP150	6	280-330	15-33.5	60-100	155-172	85
CHSP150	6	320	25	60-80	172	85
HSP200	8	450-500	0-12	80-120	140-190	100
CHSP200	8	600	25	120-140	230-270	85
